  • The name :

    DN15-DN32 Plastic meter box

  • Product Description
  • Proper for water meter from Dn15-Dn32
    High quality plastic with high pressure resistance
    Pickproof lock system
    Easy for install and dismantle
    Model name: GL-BOX-P

    Characteristics:
    All the Materials consciously selected by the known resistance to corrosion, and strongest material for longer term life;
    All  the  parts  is  easy  to  dismantle  and  re-installed,  the  most  convenient replacement for the water meter inside;
    Special locking mechanism , requiring a tailor-made key to open the lid;

  • Model : GL-BOX-P

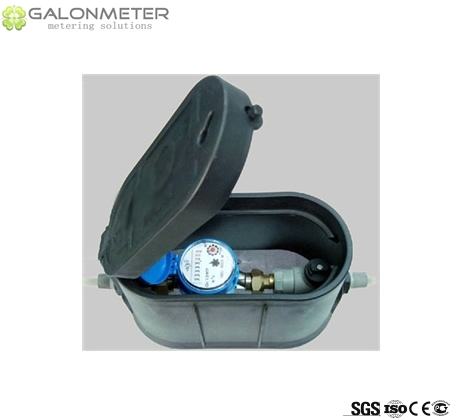

GALONMETER METER BOX-PLASTIC is designed by GALONMETER company to protected the water meter from unauthorized access and damage.

buy Plastic meter box manufacturer

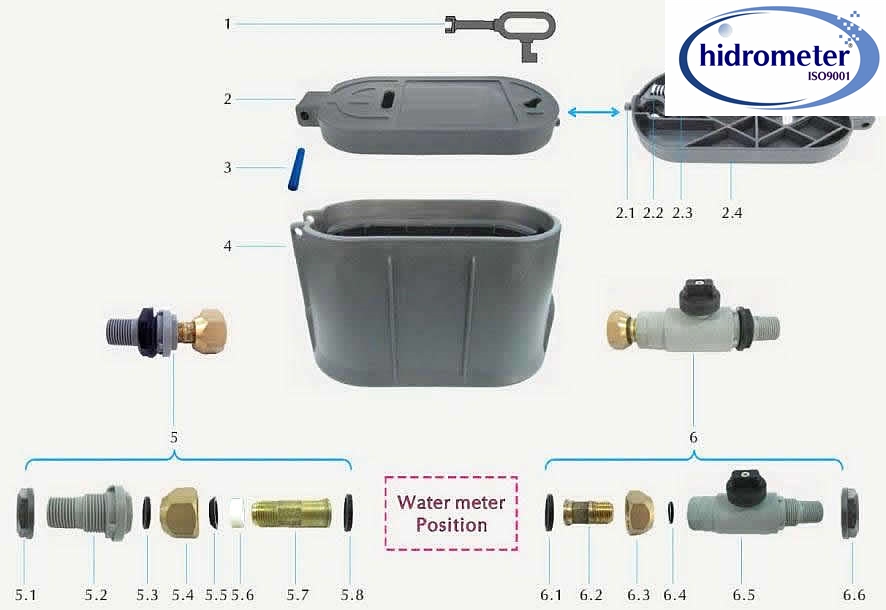

ITEM NO

DESCRIPTION

1

KEY

2

LID of the METER BOX with LOCK SYSTEM

3

HINGLE PIN

4

METER BOX

5

OUTPUT NIPPLE

6

INLET NIPPLE with BALL VALVE



Characteristics:
All the Materials consciously selected by the known resistance to corrosion, and strongest material for longer term life;
All  the  parts  is  easy  to  dismantle  and  re-installed,  the  most  convenient replacement for the water meter inside;
Special locking mechanism , requiring a tailor-made key to open the lid;

cheap Plastic meter box suppliers

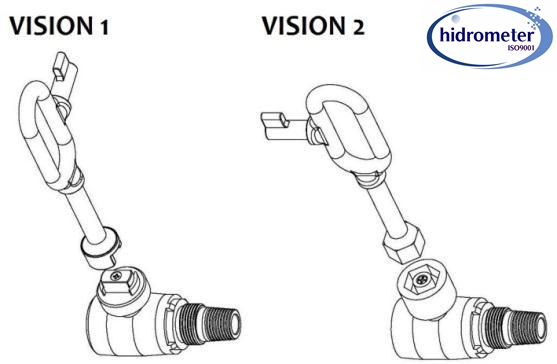

High Quality ball shut off valves without rising headparts which can cause leaks;
Suitable for use in heavy traffic situations;

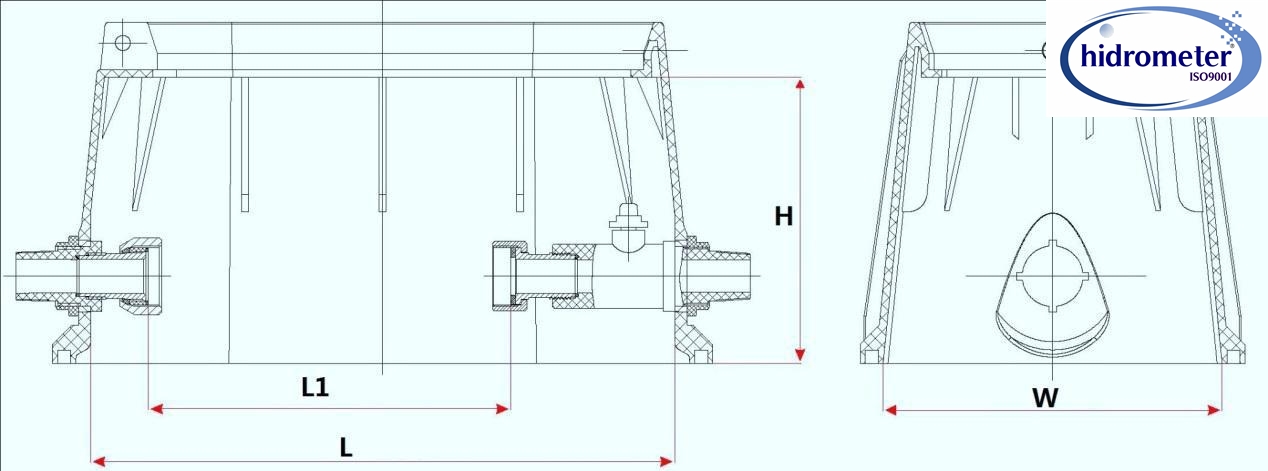

Dimension:

Plastic meter box price



Size

Dn15

Dn20

Dn25

Dn40

Dn15

Dn20

Item

MBP-SJ15

MBP-SJ20

MBP-SJ25

MBP-SJ40

MBP-MJ15

MBP-MJ20

L1

340

342

454

475

386

388

D

G3/4B

G1B

G1-1/4B

G2B

G3/4B

G1B

d

R1/2

R3/4

R1

R1-1/2

R1/2

R3/4

H

156

156

166

166

187

187

W

151.5

151.5

206

206

203

203

“L1” is the total length when nipples gaskets without compression.


Max. Inner Dimension:

china Plastic meter box for sale



Size

Dn15



Dn20

Dn25



Dn40

Dn15

Dn20

Item

MBP-SJ15

MBP-SJ20

MBP-SJ25

MBP-SJ40

MBP-MJ15

MBP-MJ20

L1

110/115



130

160



200

165 to 190

190

Suitable for WM

SJ and PD-LFC



SJ



MJ and PD-SDC

L



260





360





308

H



126





136





151

W



135





186





178

emark: all the Dimensions are only for reference!


Installation:

The water meter and the nipples should be installed with the direction of the flow as indicate by the arrow cast or injection on the parts, please check the detail form the Installation Instruction.
