  • The name :

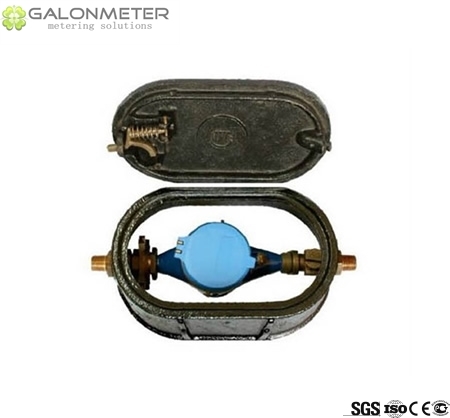

    Iron cast water meter box

  • Product Description
  • Proper for water meter from Dn15
    Non-lead brass as option
    Pickproof lock system
    Easy for install and dismantle
    Model name: GL-BOX Iron

  • Model : GL-BOX

GALONMETER GL-BOX -IRON isdesigned by GALONMETER company to protected the water meter from unauthorized access and damage.

buy Iron cast water meter box manufacturer

ITEM NO

DESCRIPTION

1

KEY

2

LID of the METER BOX with LOCK SYSTEM

3

METER BOX

4+5+6

OUTPUT NIPPLE

7+8+9+10

EXPANSION JOINT

11+12+4

INLET NIPPLE with BALL VALVE



Characteristics:

1, All the Materials consciously selected by the known resistance to corrosion, and strongest material for longer term life;

2, All the parts is easy to dismantle and re-installed, the most convenient replacement for the water meter inside;

3, Special locking mechanism , requiring a tailor-made key to open the lid;

4, Expansion joint with the function to calibrate the length;

5, High Quality ball shut off valves without rising headparts which can cause leaks;

6, Suitable for use in heavy traffic situations;

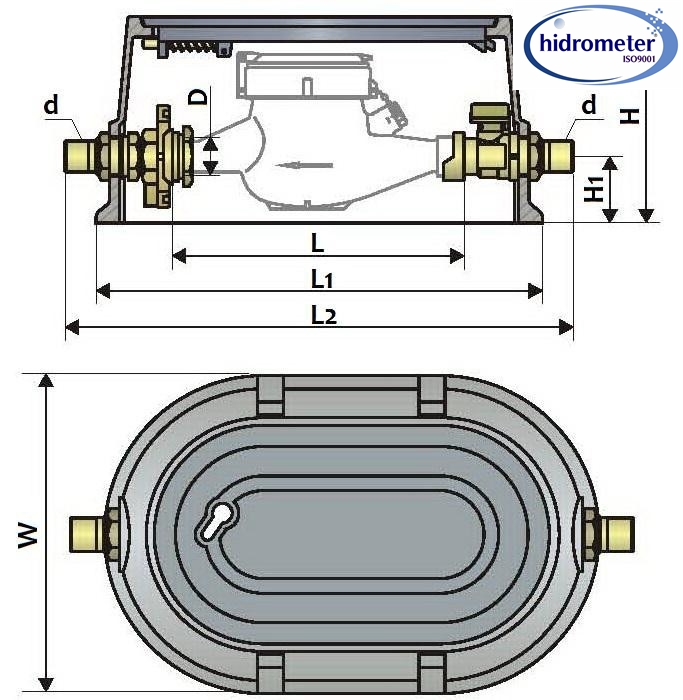

Dimension:

cheap Iron cast water meter box suppliers

Size

Dn15

Item

MBI-MJ15





L1

302

L2

345

D

G3/4B

d

R1/2

H1

45

H

138

W

195

“L2” is the total length with the gaskets without compression.

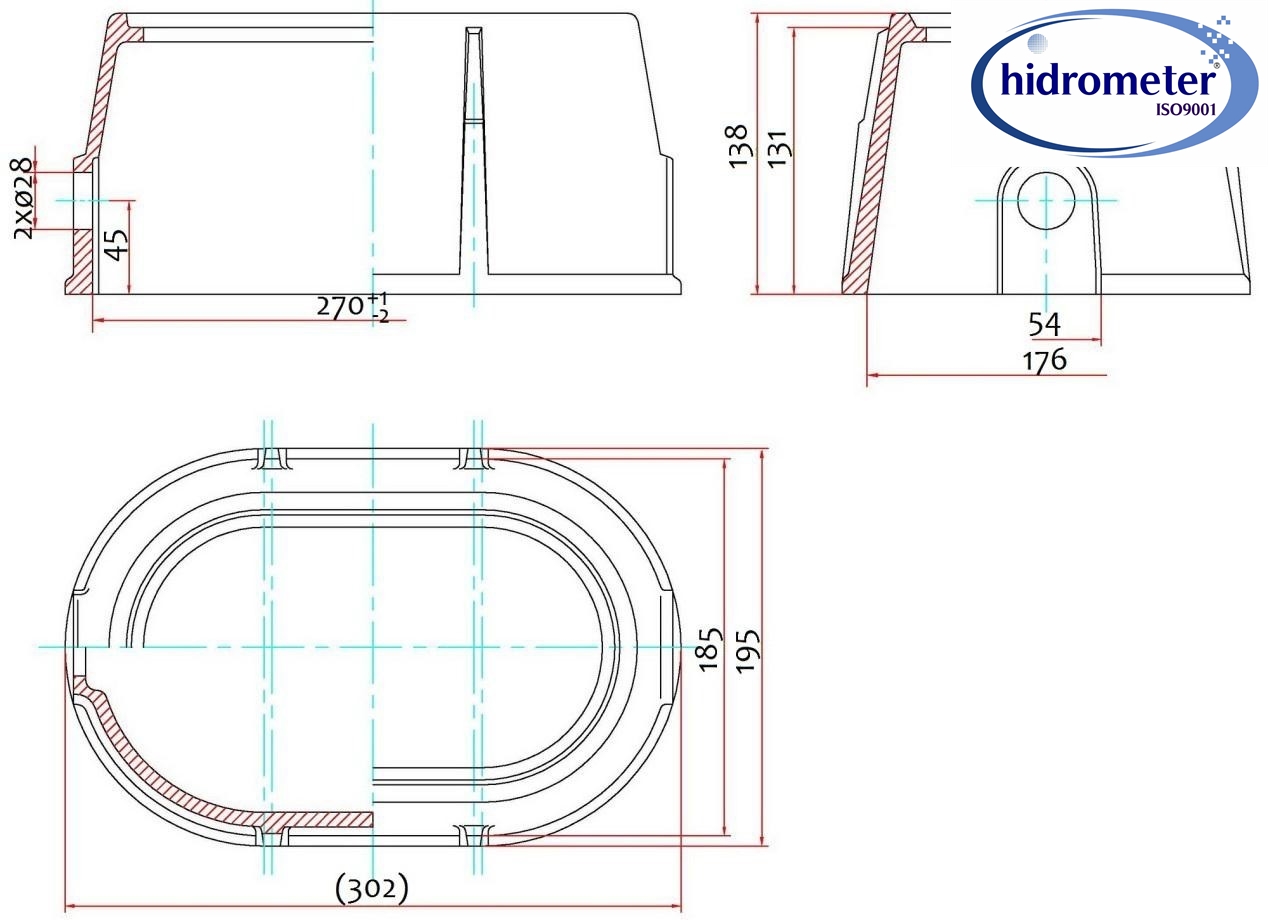

Detail Dimension for Meter Box:

Iron cast water meter box price

Remark: all the Dimensions are only for reference!


Installation:
The water meter and the nipples should be installed with the direction of the flow as indicate by the arrow cast or injection on the parts, please check the detail form the Installation Instruction.
