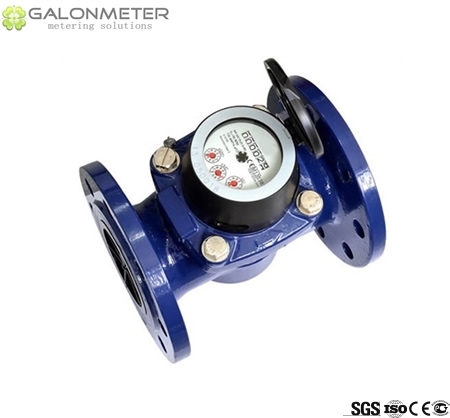

    Woltman WPD water meter

  • Product Description
  • MID Certificated
    WRAS approved
    Supper dry register with high sensitivity as Class C/ R200
    Fluid dynamic balance technology
    Stable structure with long service time
    Super low pressure loss
    Suit for both cold and hot water
    IP68 Copper sealed register
    Various flange type as options
    AMR/AMI solution available

  • Model : GL-WM-WPD

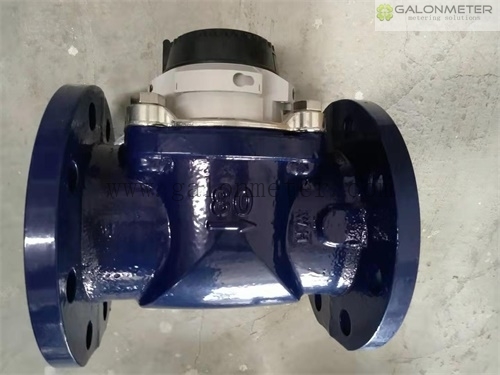

GL-WM-WPD is a flanged mechanical turbine water meter have the size from DN40 to DN500 (1.5 inch to 20 inch), designed and manufactured by GALONMETER, it is a removable element woltman water meter for industrial and irrigation application.

FEATURES:
Extended low and high flow measuring range
Low pressure loss characteristics,less than 0.01 MPA
High accuracy,achieve R200 to R400;
Robust shroud and copper can register for clear readability
Measurement of cold water up to 50℃;
Pattern approved removable measuring element;
Long working life and optimum accuracy


Standard compliance:
*ISO4064:2005/OIML R49

Working conditions:
*Temperature: T50 or T30
*Pressure:  ≤1.6MPa

Options:
*Flange Connections: DIN, PN16 /10, ANSI 125/ 150lb

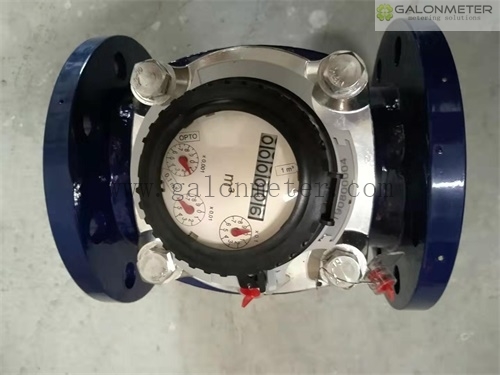

*Register: 6-digital Roller+2 Pointer +Semi window counter reading in Cubic meters
*Copper can register

buy Woltman super dry high sensitivity water meter manufacturer   cheap Woltman super dry high sensitivity water meter suppliers

*Pulse output always ready, and Pulse output AS OPTION:
1. The Pulse Output Device consists of a plastic housing with a Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
2. Electric Data: Vmax=24AC/DC; Imax=0,01A
3. Capacity of the Pulse Emitter:

Size



m3/pulse

Dn40 to Dn125

0.1

1

Dn150 to Dn200

1



10

Dn250 to Dn500

10

100

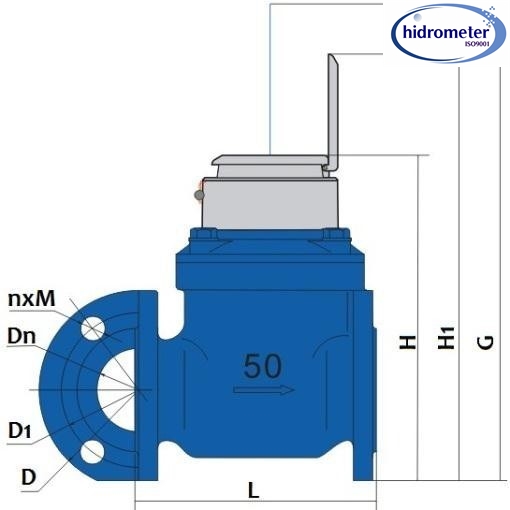

DIMENSION:

       Woltman super dry high sensitivity water meter price

E.g.The Flange Standard under ISO 7005-2:1998(E) PN16 as:

Dn (mm)

50

80

100

150

200

250

300

400

500

L (mm)

200

225

250

300

350

450

500

600

800

H (mm)

210

265

270

310

370

490

576

630

740

H1 (mm)

320

350

370

520

620

710

750

830

930

D (mm)

165

200

220

285

340

405

460

580

715

D1 (mm)

125

160

180

240

295

355

410

525

650

G.W.(Kg)

9.5

11.6

14.5

27.5

48

94

114

199

340



Flow rate technical specification

Size

mm

50

80

100

150



200

250

300



400

500

R

Q3/Q1

250

250

250

250

200

200

160



160

160

Q4

m3/h

78.8

125

200

500

787.5

1250

2000

3125

5000

Q3

m3/h

63

100

160

400

630

1000

1600

2500

4000

Q2

m3/h

0.4

0.63

1

2.56



5

8

16



25

40

Q1

m3/h

0.25

0.4

0.63

1.60



3.2

5

10



15.6

25

Max. Reading

m3



999999,999



9999999,99



99999999,9



Min. Reading

m3



0,0005





0,005







0,05



Max. Temperate











T30 or T50











Max. Temperate











T30 or T50

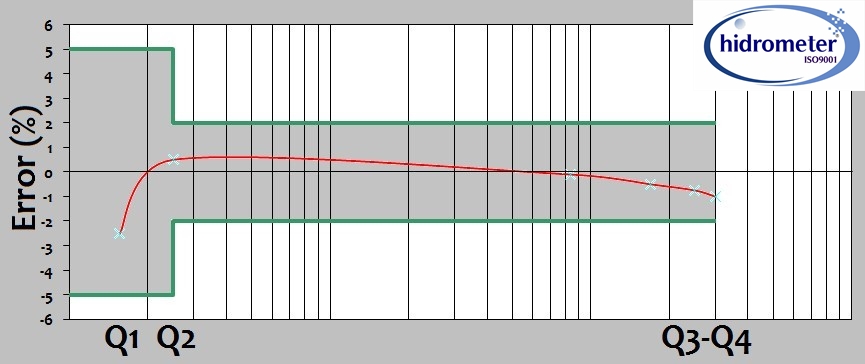

Accuracy Chart

china Woltman super dry high sensitivity water meter for sale



MAIN TECHNICAL DATA:

MAX. PERMISSION ERROR:
From Q1 inclusive up to but excluding Q2 is ± 5%;

From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50 ;

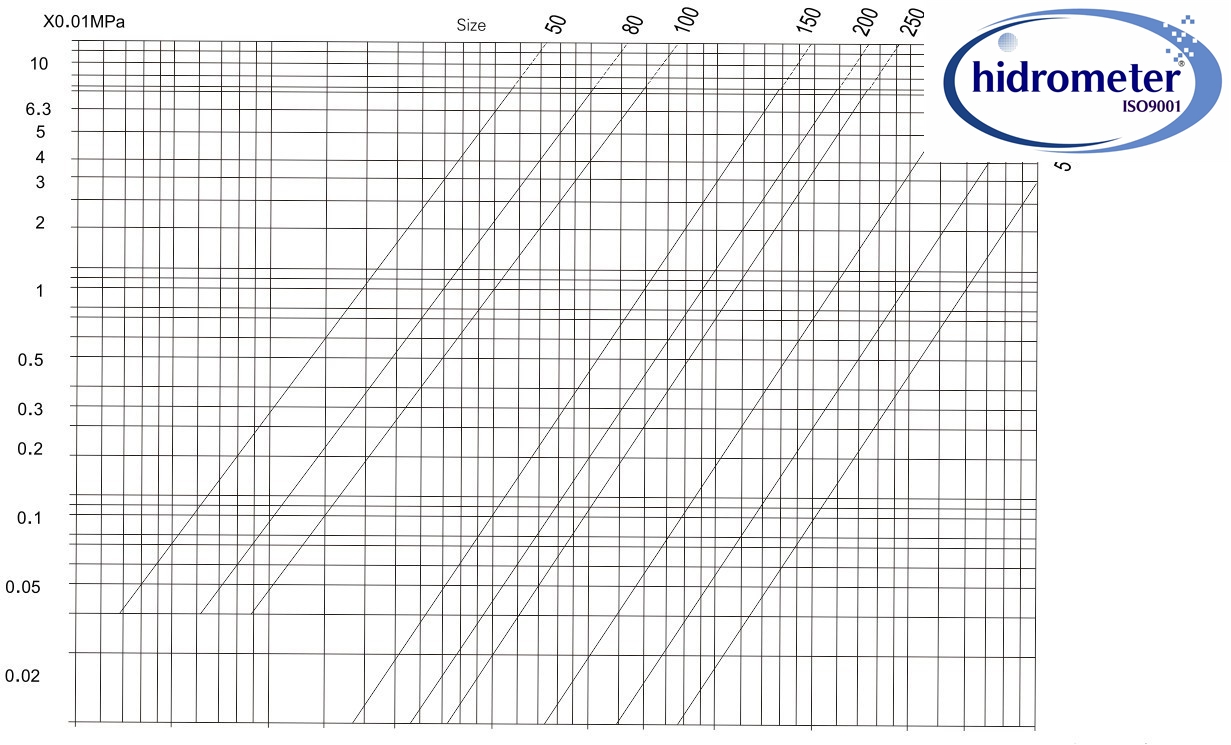

Pressure loss

buy Woltman super dry high sensitivity water meter manufacturer

Installation:
*The meter can be installed in any position with the direction of the flow as indicated by the arrow cast in the meter body, with the register face upwards.

*The  meter  shall  have  5  diameter  straight  pipes  ahead  of  the  meter  and  3 diameter straight pipes after insure proper flow through the meter.
*Pipeline shall be flushed before installation.
*The meter should be constantly full of water during operation
