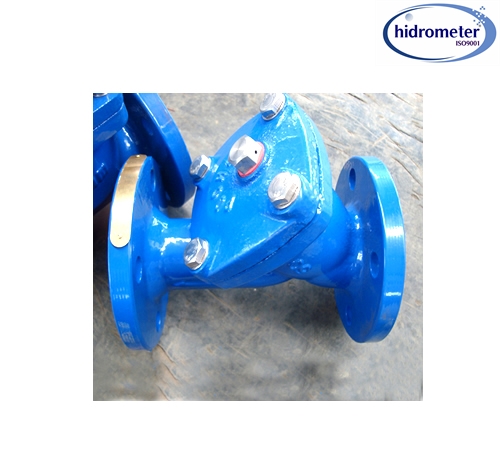

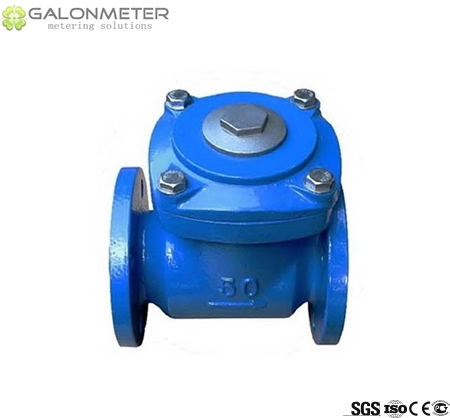

GALONMETER WOLTMANN STRAINER is designed by GALONMETER to protect the Woltmann water meter from the damaging effects of debris.
Characteristics:
GALONMETER WOLTMANN STRAINER is safely using under the water temperature up to 90℃;
With inside and outside epoxy coating of the body for protecting the corrosion;

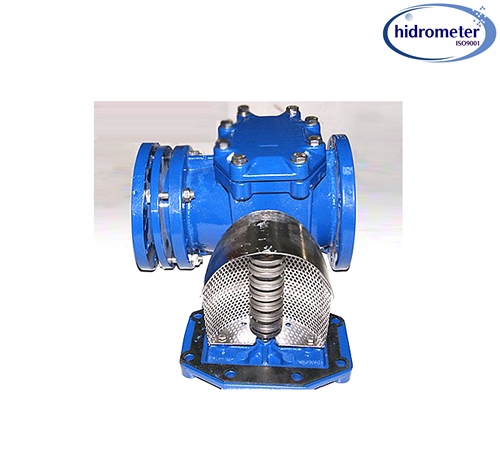

Stainless Steel Filter Screen made by Stainless Steel for longer term using;
Easy for cleaning, no needs to dismantle the Strainer form the pipe, just take down the top Plug;

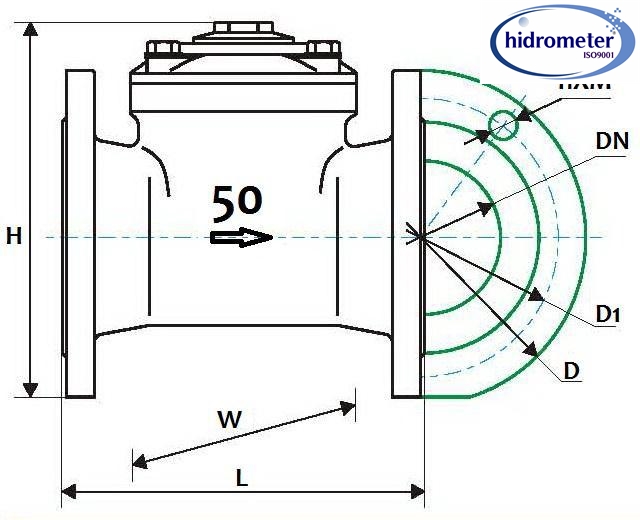

Dimension:
The Flange Standard under ISO 7005-2:1998(E) PN16 as:
DN
40
50
65
80
100
125
150
200
250
300
350
400
500
L
200
200
225
250
250
300
350
450
500
600
800
H
220
230
240
258
271
300
345
477
504
638.5
770
D=W
165
185
200
220
250
285
340
405
460
580
715
D1
125
145
160
180
210
240
295
355
410
525
650
nXM
4XM16
8XM16
8XM20
12XM20
12XM24
16XM27
20XM30
Different Flange Standard for selecting such as: ISO 7005-2: 1998(E) PN10, ASME B16.1-Class 125 working for B16.5-Class 150…
Different Length of the Body for Selecting:DN
40
50
65
80
100
125
150
200
250
300
350
400
500
L
250
250
200
300
X
430
X
X
X
500
500
270
260
270
360
X
X
X
X
X
X
X
310
X
300
483
X
X
X
X
X
X
X
X
X
413
X
X
X
X
X
X
X
X

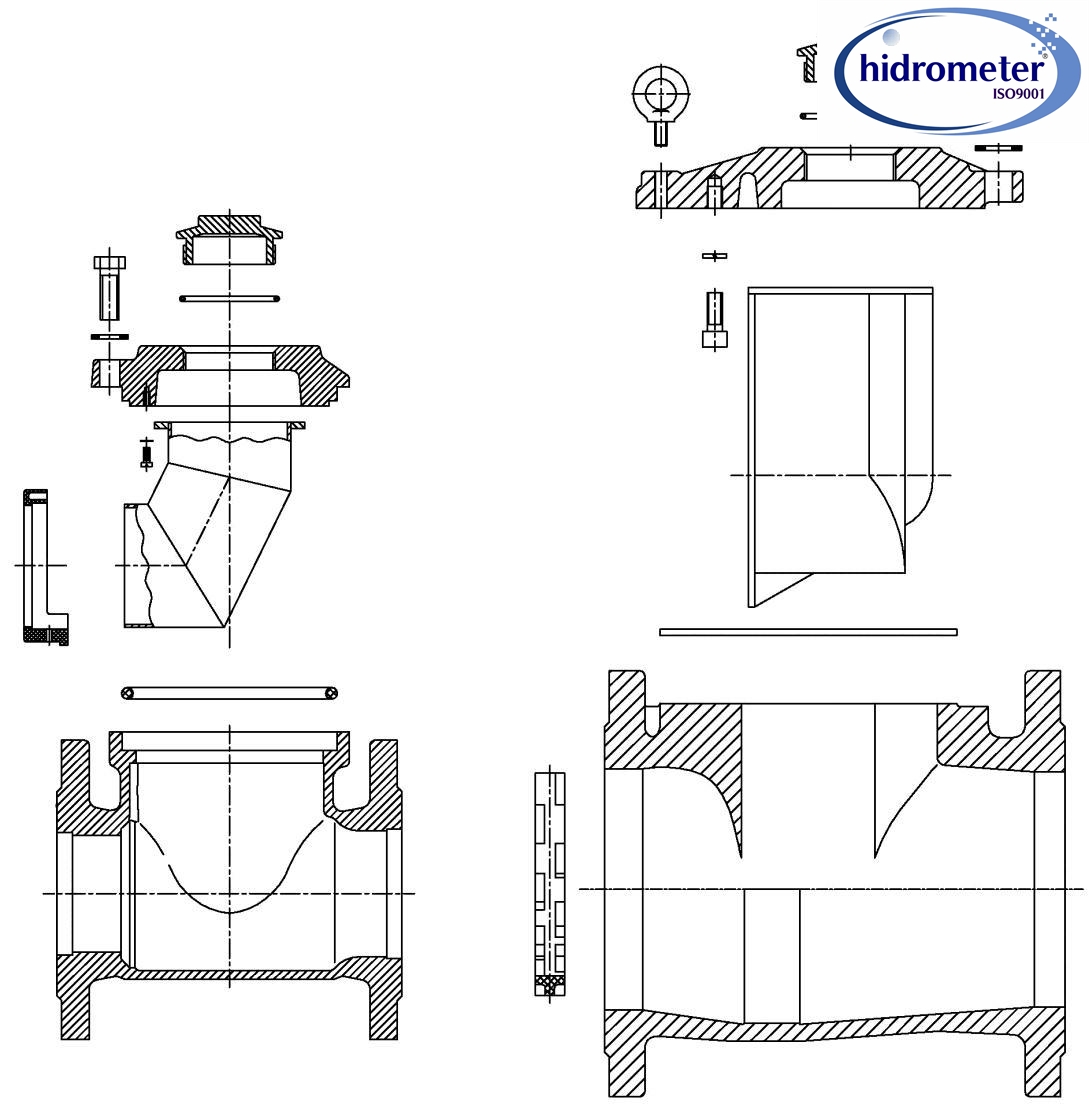

Exploded Drawing:
For Size from Size Dn50 to Dn125 For Size for Size Dn150 to Dn200
