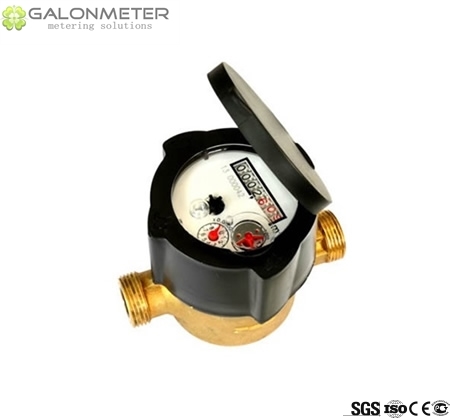

GALONMETER GL-VM-SD2 is Piston Displacement (Volumetric) water meter with magnetic transmission, dry type register at sizes Dn15 designed and manufacture by GALONMETER and meets to the requirements of Directive 2004/22/EC on measuring instruments; the European Standard EN14154+A1+A2: Water Meter; the International Organization of Legal Metrology OIML R-49: 2006(E) or ISO4064 Standard.
CHARACTERISTICS:
1. All the components are produced with high resistance and quality materials, technical plastics and stainless steel parts;
2. Cold water meter under current standard for lower than 30℃(T30), but GALONMETER GL-VM-SD2 Composite Vision can be used safely in water temperature up to 50℃(T50);
3. The ROTARY indicator register for the most comfortable reading position is of 7 Rollers and 2 Pointers;
4. Suitable for any position installation;
5. The Piston is the main moving parts in contact with water permitting the most reliable;
6. The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
7. Direct supply dry digital counter for easy reading in Cubic Meters.
8. The conception of the Magnetic Protection to against the external influences;
9. The dry compartment register shall be possible to turn on 360°
10. AMR pre-equipped at 10 liters/pulse;
11. Non Return Valve to avoid the reserve flow Rate AS OPTION;
DIAL PLATE DESIGN:
DIMENSION:
Size
Dn15
L
110
L1
204
D
G3/4B
d
R1/2
H
97.3
H1
161
W
82.5
Weight
1.10
L1: the total length with connection and the gasket without compression.
MAIN TECHNICAL DATA:
(EN14154 Standard / ISO4064:2005 Standard)
Size
mm
Dn15
R
Q3/Q1
200
Q4
m3/h
2.0
Q3
m3/h
1.6
Q2
l/h
12.8
Q1
l/h
8
Qs
l/h
5
Max.Reading
m3
99999,9999
Min. Reading
Liter
0.02
Pressure Loss
ΔP
ΔP<63 at Q3
Max.Pressure
MAP
MAP16
Max.Temperate
℃
T30 or T50
(For different Q3 and R, please contact with GALONMETER manufacture)
(ISO4064:1993 Standard)
Size
mm
Dn15
Metrological Class
B
Qmax
m3/h
2.0
Qn
m3/h
1.0
Qt
l/h
15
Qmin
l/h
10
Qs
l/h
5
Max. Reading
m3
99999,9999
Min. Reading
Liter
0.02
Pressure Loss
ΔP
<1 bar at Qmax,<0.25 bar at Qn
Max. Pressure
Bars
16
Max. Temperate
℃
T30 or T50
(For different Class, please contact with GALONMETER manufacture)

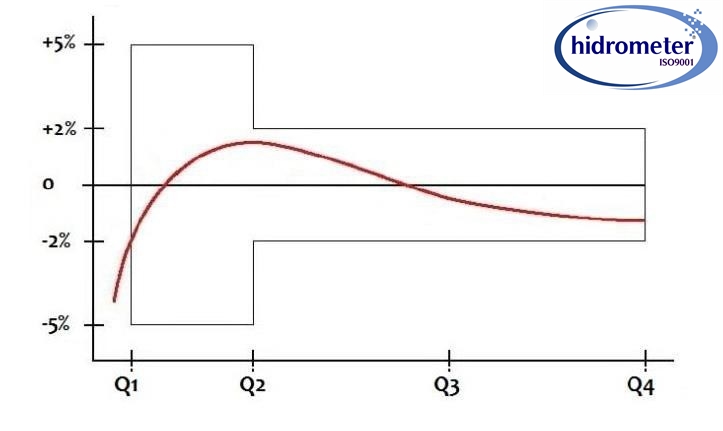

MAX PERMISSION ERROR:
From Q1 inclusive up to but excluding Q2 is ± 5%;
From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50.
OPTION FOR AMR SYSTEM:
GALONMETER AMVmodules have been designed to fulfill requirements of all water management utilities willing to remote read their water meters. GL-VM-SD2 series are pre-equipped considering actual or future evolutions towards remote reading technologies. The HRI module completely compatible with all GALONMETER water meters equipped with the non-magnetic sensors.
1. It can be easily retrofitted and installed on meters already on the field.
2. Magnetic tampering is impossible since the non-magnetic target is not influenced by an external magnet
3. AMV module is not sensible to pipe vibrations. Parasitic pulses do not disturb metering. Remote position: 1 pulse per revolution.
