Single-Jet Series Water Meter

Home » Products » Single-Jet Series Water Meter » Single jet super dry high sensitivity water meter

  • The name :

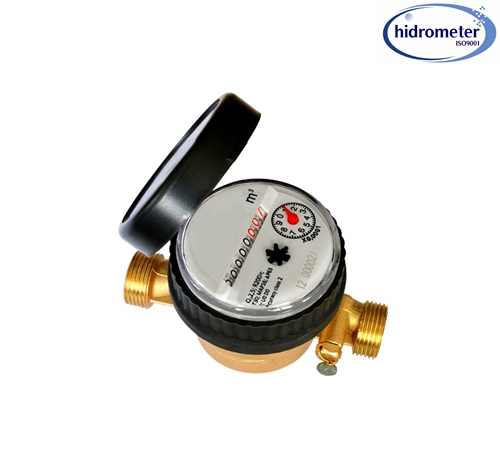

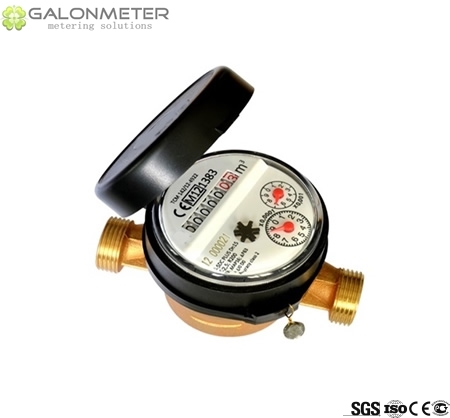

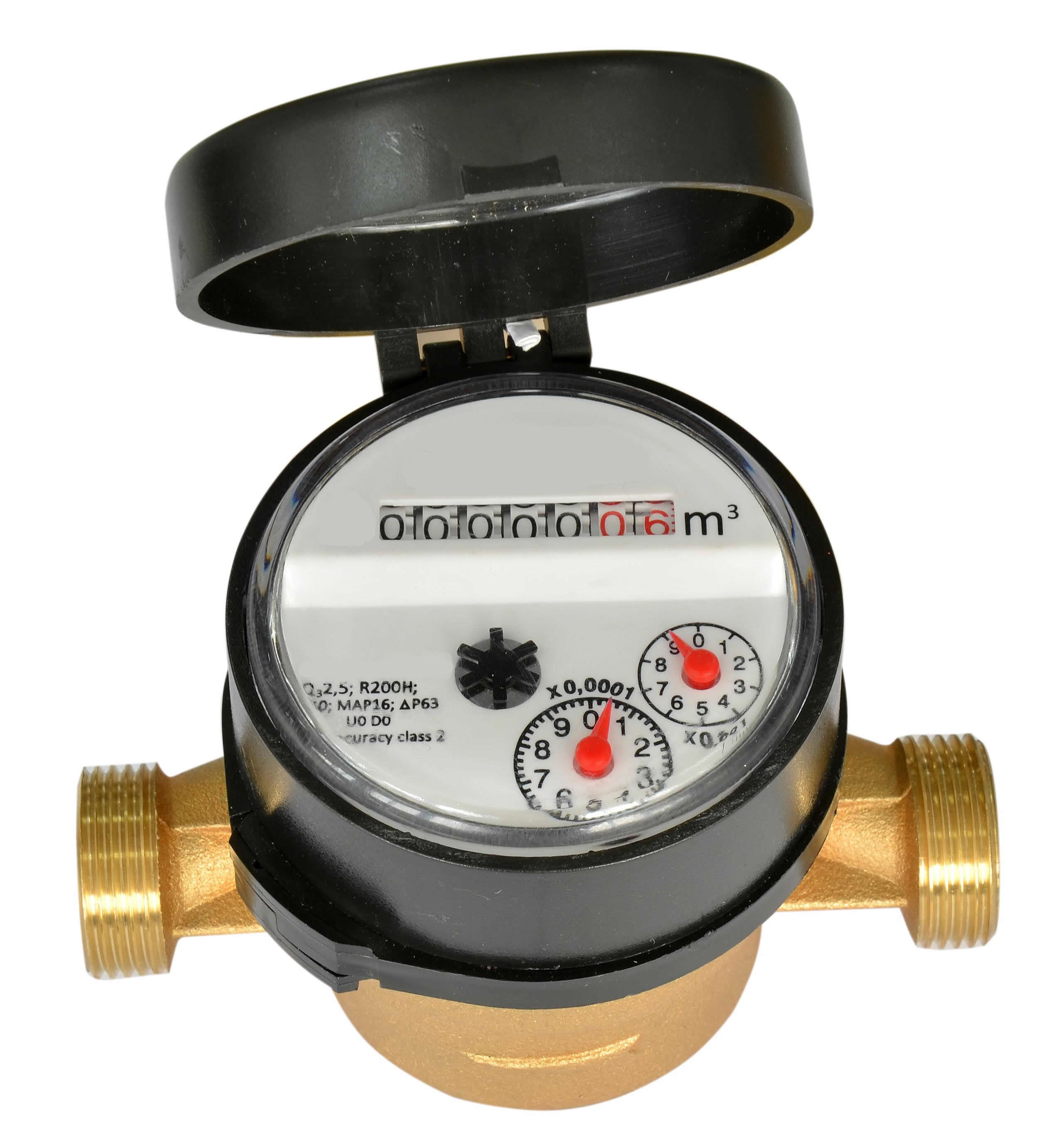

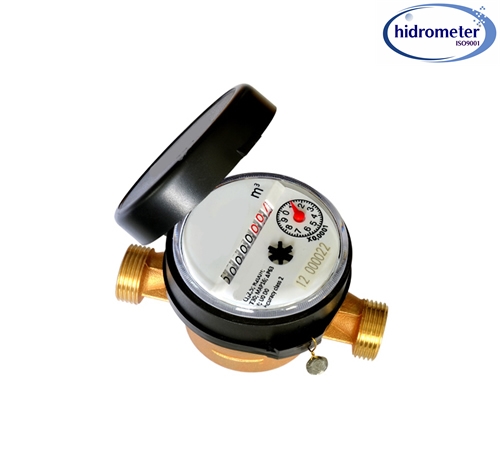

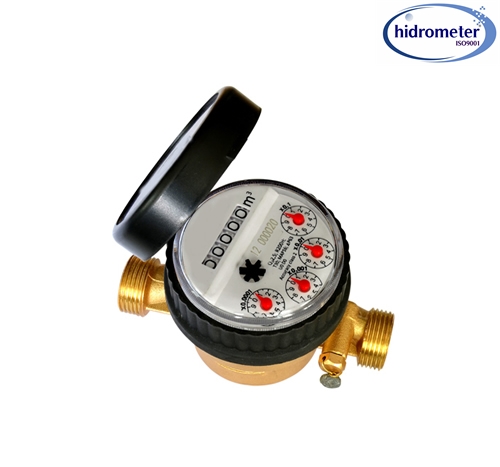

    Single jet super dry high sensitivity water meter

  • Product Description
  • MID Certificated
    WRAS approved
    Super dry register with high sensitivity as Class C /R160
    Suit for both cold and hot water
    360° rotating register
    AMR/AMI solution available

  • Model : GL-SJ-SD



GALONMETER GL-SJ-SD is IMPELLER (turbine), single jet water meter with dry type register for residential application with sizes from Dn15 to Dn25.

Characteristics:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30℃(T30), but GALONMETER GL-SJ-SD can be used safely in water temperature up to 50℃(T50);
Rotary indicator register with 7 Rollers and 2 Pointers for easy reading;

The Impeller is the only moving parts in contact with water permitting the most reliable;
The conception of the Magnetic Protection to against the external influences;
No need for external adjustment due to its design and high technology in manufacturing;
High Accuracy for Horizontal installation;
With Pre-equipped for communication device as Option.

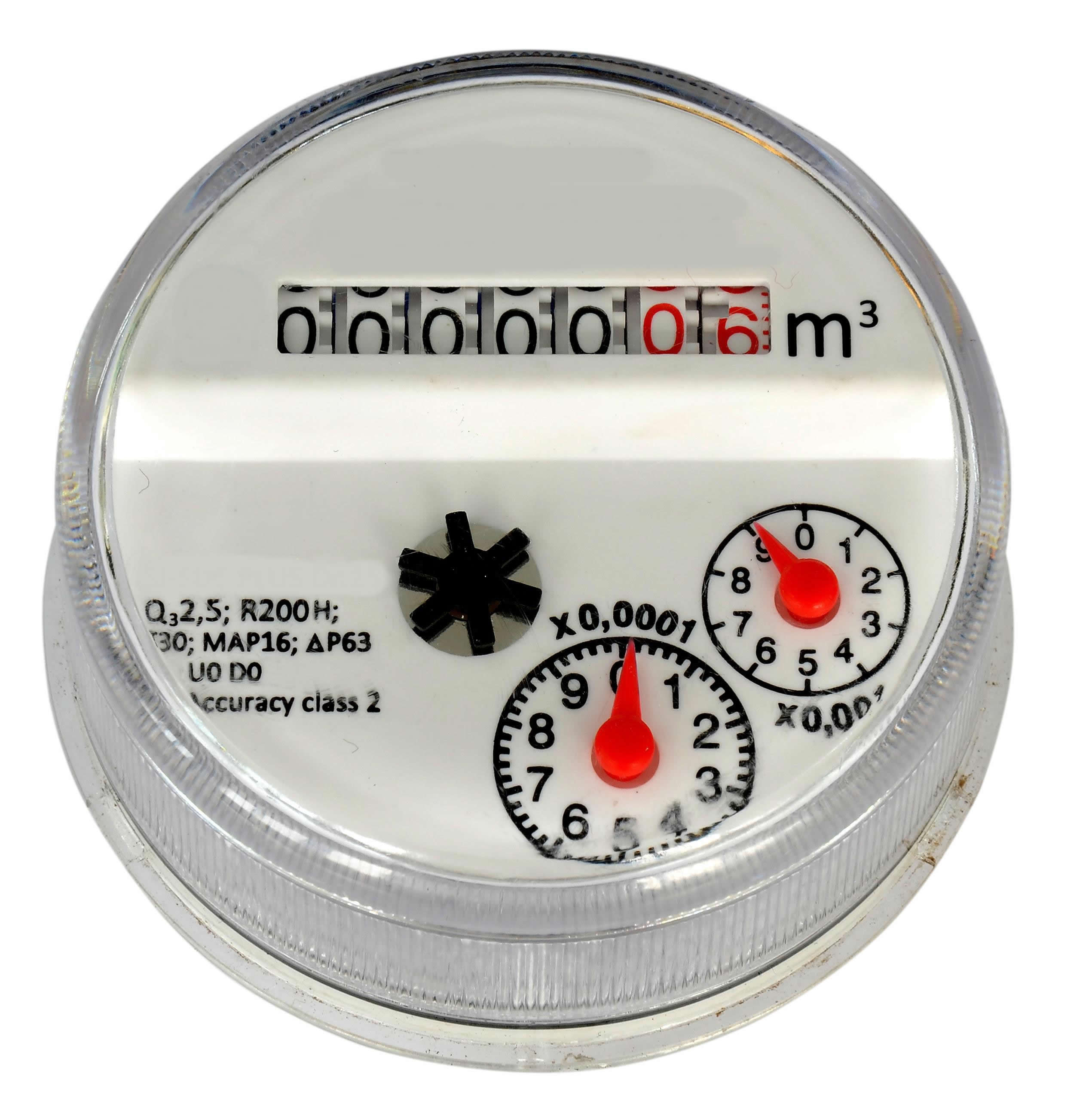

Dial Plate Design:

cheap  Single Jet Super Dry High Sensitivity Water Meter  suppliers

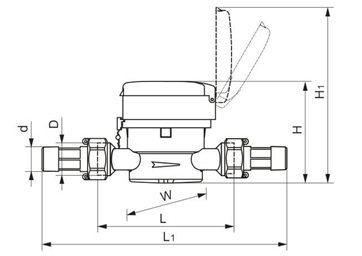

Dimension:

Single Jet Super Dry High Sensitivity Water Meter  price

Size

Dn15

Dn20

Dn25

L

110

130

160

L1

204

234

280

D

G3/4B

G1B

G1-1/4B

d

R1/2

R3/4

R1

H

84.5

84.5

106

H1

145.5

145.5

167

W

81.5

81.5

84



L1: the total length with connection and the gasket without compression.

Main Technical Data:
Under En 14154:2005+A1+A2, OIML R49: 2006(E), ISO 4064: 2005(E)

Size

Dn

Dn15

Dn20

Dn25

R

Q3/Q1

160

160

160

Q4

m3/h

3,125

5

7,875

Q3

m3/h

2,5

4

6,3

Q2

l/h

25

40

63

Q1

l/h

15,625

25

39,375

Max. Reading

m3

99999.9999

Min. Reading

Liter

0.02

Pressure Loss

ΔP

63

Max. Pressure

MAP

16

Max. Temperate

T

T30 or T50

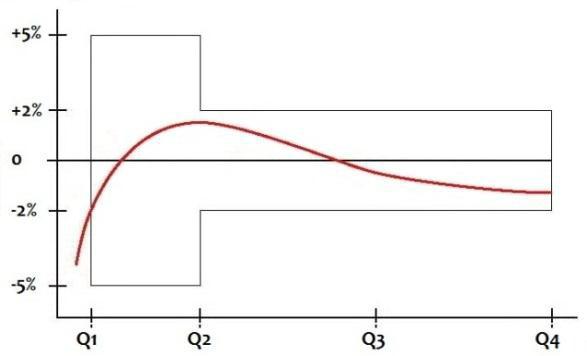

Max. Permission Error:
From Q1 inclusive up to but excluding Q2 is ± 5%; From Q2 inclusive up to and including Q4 is ± 2%;

china  Single Jet Super Dry High Sensitivity Water Meter  for sale

SJ-SDC PLUS also meets to the International Standard: ISO 4064:1993 Standard, main technical data as:

Size

Dn

Dn15

Dn20

Dn25

Metrological Class

C

C

C

C

Qmax

m3/h

3

5

7

Qn

m3/h

1,5

2,5

3,5

Qt

l/h

22,5

37,5

52,5

Qmin

l/h

15

25

35

Max. Reading

m3

99999,9999

Min. Reading

Liter

0.05

Pressure Loss

Bars

ΔP<1 at Qmax ΔP<0.25 at Qn

Max. Pressure

Bars

PN16

Max. Temperate

40

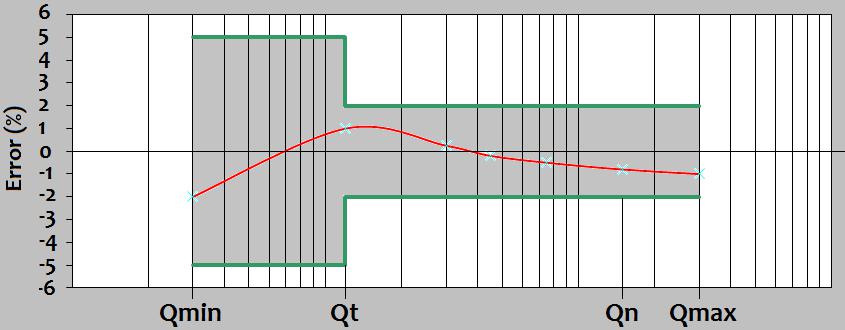

MAX. PERMISSION ERROR:
From Qmin inclusive up to but excluding Qt is ± 5%; From Qt inclusive up to and including Qmax is ± 2%;

buy  Single Jet Super Dry High Sensitivity Water Meter  manufacturer

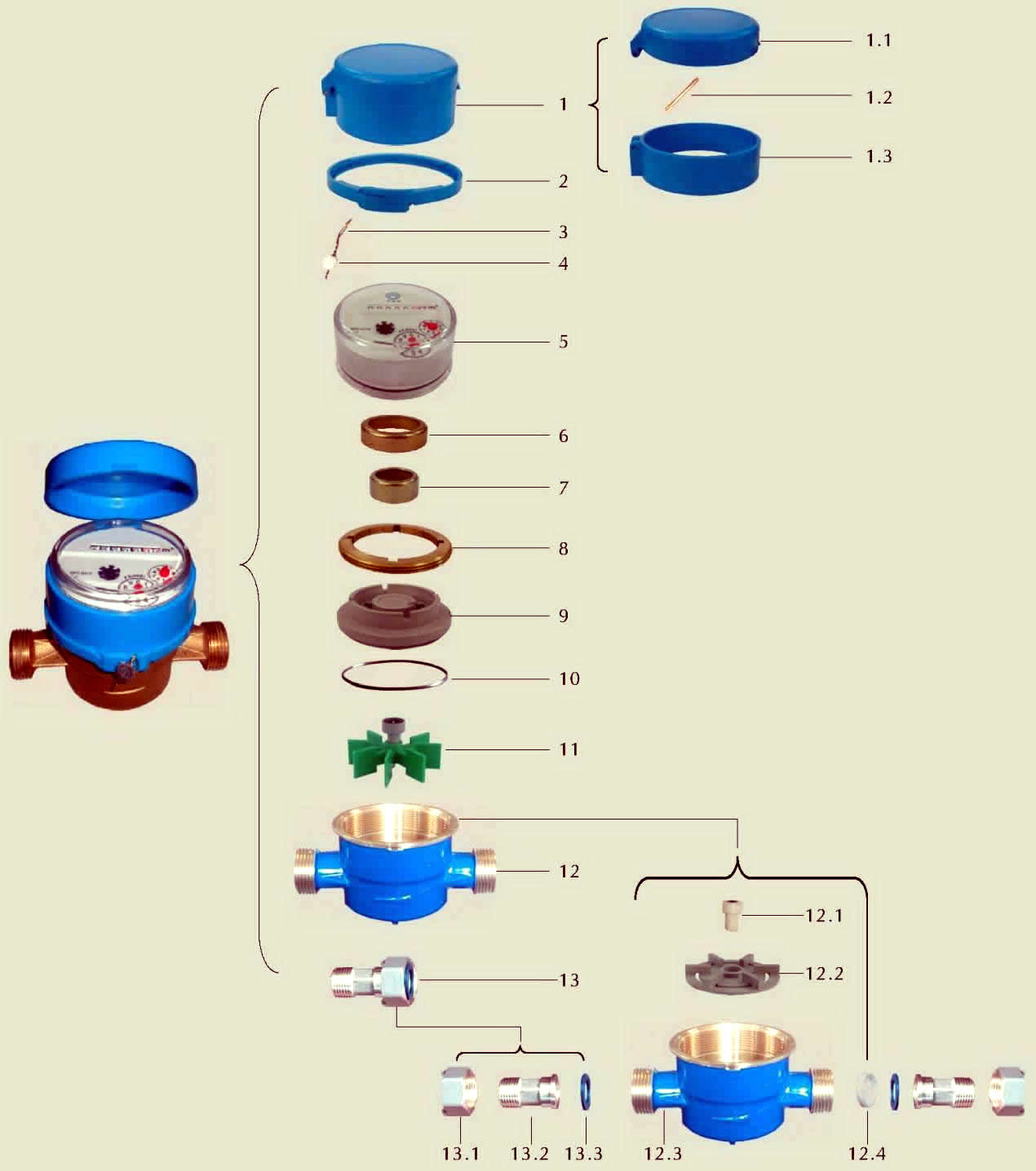

Exploded Drawing:

Single Jet Super Dry High Sensitivity Water Meter  price
