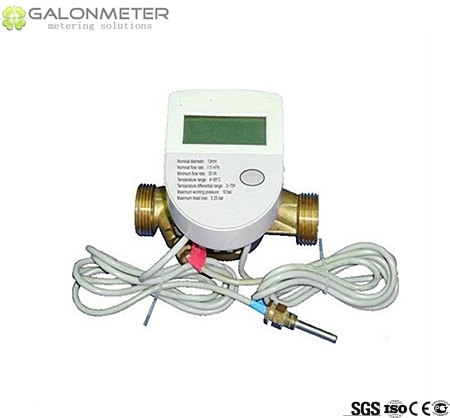

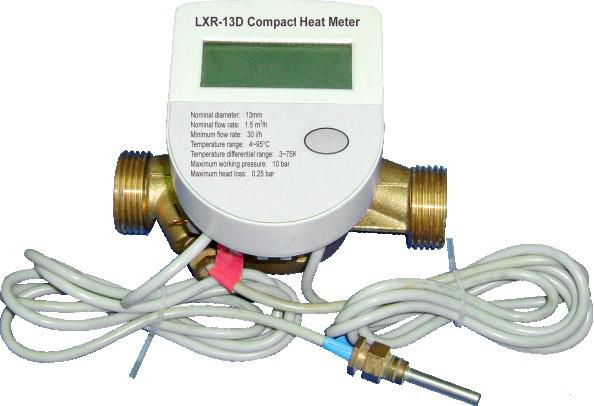

It is a turbine Compact heat water meter for reside nt ial app lication in sizes 15 mm and 20 mm for he at meter.
Features
The flow sensor is a single jet water meter
The calculator displays all actual and fixed date related data ergonomically operated by one push button
The calculator can rotate 360o,can taken off from the me ter for easily reading in any position
Application
For measur ing the he at whi ch , in a he at-excha ng e circui t,is abs or be d or given up by wat er called the he at-con veying liqu id
Application in household-based heating system and air conditioner cooling system
A Coils for turbine detection C Copper sheet in impeller D Impeller
Standards Compliance
ISO 4064 Class B for horizontal Installation
Working Conditions
Water temperature: ≤ 90℃
Water pressure: ≤ 1.6 MPa

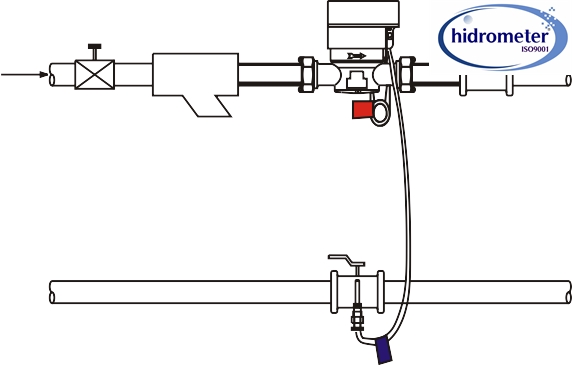

Inlet
In sta llati on
Cut-off valve Strainer
Ball valve
Installation Requirements
The meter should be installed in horizontal position with the register face upwards
Pipeline must be flushed before installation
Nomi nal diame ter
DN
13
20
Body thread
D
G3/4B
G1B
Connector thread
d
R1/2
R3/4
Body length
mm
L
110
130
Ov erall length
mm
L1
204
234
Me ter height
mm
H
90
90
Inlet central line height
mm
H1
18.1
18.1
Height
mm
H2
139
139
Wi dth
mm
W
93
93
Wi dth
mm
W1
114
114
We ight without connectors
Kg
0.82
0.92
We ight with connectors
Kg
1.0
1.2
“L1" is the total length when coupling gaskets without comp ression.

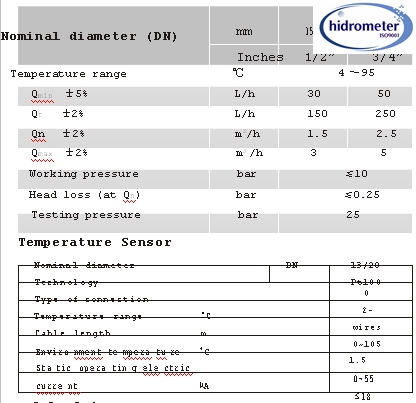

Main Technical Data
Calculator
No mi nal diame ter
DN
13/20
Temp erature range °C
1~9 9
Temp erature di fferential range °C
3~7 5
Lithium ba ttery
Voltage V
3.6
Li fetime year
5
Di splay di git
8
Resolution of LC D
kWh
0.001
3
0.001
m3 /h
0.001
°C
0.01

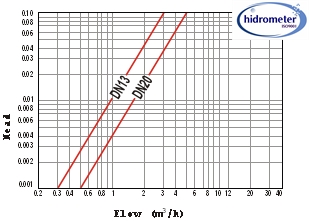

Head Loss Curve
